A Simple Crystal Radio

         A crystal radio is a simple radio receiver that was popular in the early 20th century. It requires no external power source and is able to pick up radio signals using only the energy present in the radio waves themselves.

        The basic components of a crystal radio include a tuned circuit made up of a coil of wire and a capacitor, a diode (typically a germanium diode), and a set of headphones. The coil and capacitor are used to tune the circuit to a particular frequency, while the diode acts as a detector, allowing the radio waves to be converted into an audio signal that can be heard through the headphones.

        Crystal radios were once a popular hobby for many people, as they allowed enthusiasts to build their own radio receivers with basic materials. They were also used as a means of communication during wartime when conventional radio transmissions could be detected by the enemy.

        While crystal radios are not as widely used today due to the availability of more advanced radio technologies, they still hold a place in the history of radio and as a testament to the ingenuity of early radio pioneers.

Crystal Radio Prototype

        The crystal radio works by using the energy present in radio waves to create an audio signal that can be heard through a set of headphones. Here's how it works:

1. The antenna: The first component of a crystal radio is the antenna, which receives radio waves and converts them into an electrical signal.
2. The tuned circuit: The electrical signal is then sent to a tuned circuit made up of a coil of wire and a capacitor. The coil and capacitor work together to select a specific frequency that the radio will receive.
3. The diode: The signal is then passed through a diode, which allows current to flow in only one direction. This rectifies the signal, meaning it removes the negative parts of the alternating current signal and leaves only the positive parts.
4. The headphones: The rectified signal is then sent to a set of headphones, where it is converted into sound waves that can be heard by the listener.

        Because the crystal radio relies solely on the energy present in radio waves, it doesn't require an external power source to operate. This makes it a very simple and efficient device, but it also means that it can only receive relatively strong signals and is not able to amplify weak signals like more modern radios.

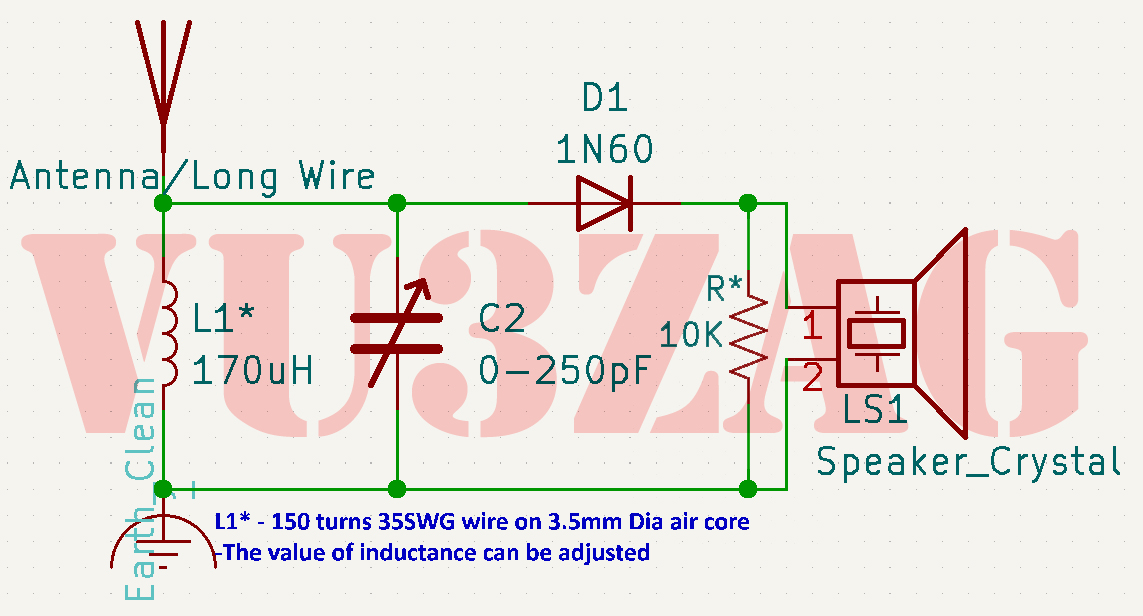

        The antenna is connected to a coil of wire (L1) and a capacitor (C1) to form a tuned circuit. The diode (D1) is connected to the tuned circuit and the headphones. A crystal can be used in place of the diode for improved performance.

Circuit Diagram

        When a radio wave is received by the antenna, it induces a small electrical current in the coil. The tuned circuit resonates at a particular frequency, and this electrical current is amplified by the tuned circuit. The diode rectifies the amplified signal, allowing only the positive part of the wave to pass through to the headphones. The headphones convert the electrical signal into sound waves that can be heard by the listener.

        Note that the values of the components used in a crystal radio circuit can vary depending on the desired frequency range and other factors.
